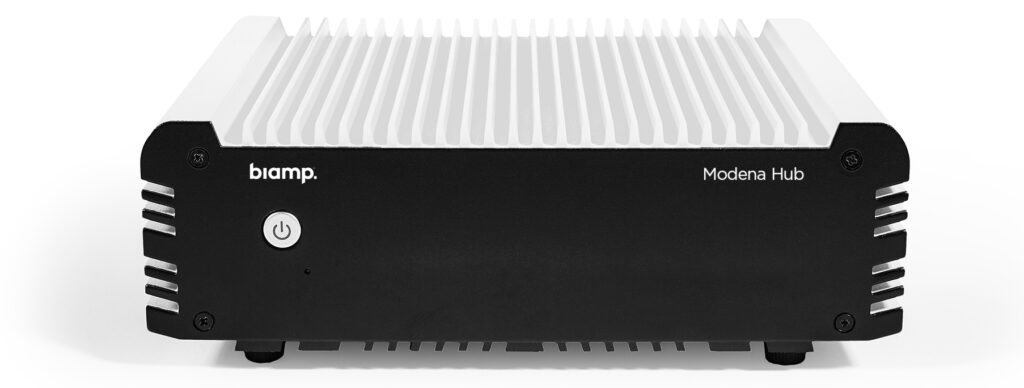

TECHBEE is one of the leading Biamp Modena Wireless Presentation Partner in Dubai. Modena Hub allows laptops, tablets, and mobile devices to share screens with a room display as well as receive content from others via a conventional web browser.
If a wired LAN connection is used, your Network Administrator must make that Modena is set up so that it is visible to all users. Your personal device will be able to connect to Modena using the same network settings as you would use to connect to your workplace network in this arrangement.
Direct WiFi connections are supported by Modena Hub+ if you are within range of its inbuilt WiFi access point and it has been properly configured by your administrator. Select the Modena Hub+’s WiFi name (SSID) to connect. The radio band is set to 5GHz by default, with the SSID “modenahub” and the password “modenahub,” however these settings may have been altered (recommended!). Request the Modena Hub+ credentials from your network administrator.
In order to connect to a session using your web browser, you’ll need to know the Modena unit’s IP address. Modena’s IP address is either dynamically assigned by DHCP or statically assigned during configuration if it is connected to the company LAN. The IP address of the unit can be read on the welcome screen if it is connected to a display or projector and no presentation is in progress. Two IP addresses are possible for Modena Hub+ units: one for the wired Company LAN connection and one for the inbuilt WiFi network adapter (default 10.3.2.1). If you’re connected to the Modena Hub+’s local AP, use the second IP address.
Without having to install any software, the Modena wireless sharing system lets you to start or attend a presentation session using only your web browser. A WebRTC competent browser is required for this clientless, web-based service. Chrome 83, Firefox 76, and Edge 83 are compatible web browsers for Windows 10, MacOS, and Linux at the time of writing.
To use this method, open your web browser and type the IP address into the address bar. Your browser will display a security warning if you connect to this Modena unit for the first time and there is no custom HTTPS certificate loaded on the Modena device. This arises because the Modena web server’s default SSL certificate is self-signed.
When the home page loads, participants must type their name (which will be kept for future connections) and the room passcode (if enabled). The passcode will appear on the presenter’s welcome screen as well as any connected participants’ browser/client window. The passcode is a four-digit number that is created at random each time the first participant begins a session.
The following requirements for passcode admission can be set in the web admin’s room page:
Finally, to join the presentation session, click the Join option.
The presentation control page changes during the presentation, and you can now:
– Put an end to the presentation: you will no longer be sharing your screen. – Lock the presentation: until you unlock it again, no other participant will be able to present their screen.
Every laptop, tablet, or mobile device may share screens with the room display and receive material with Modena Hub, making meetings more comfortable. Modena Hub brings out the best in BYOD by removing obstructions like HDMI cords, adaptors, and dongles.
